Product Overview

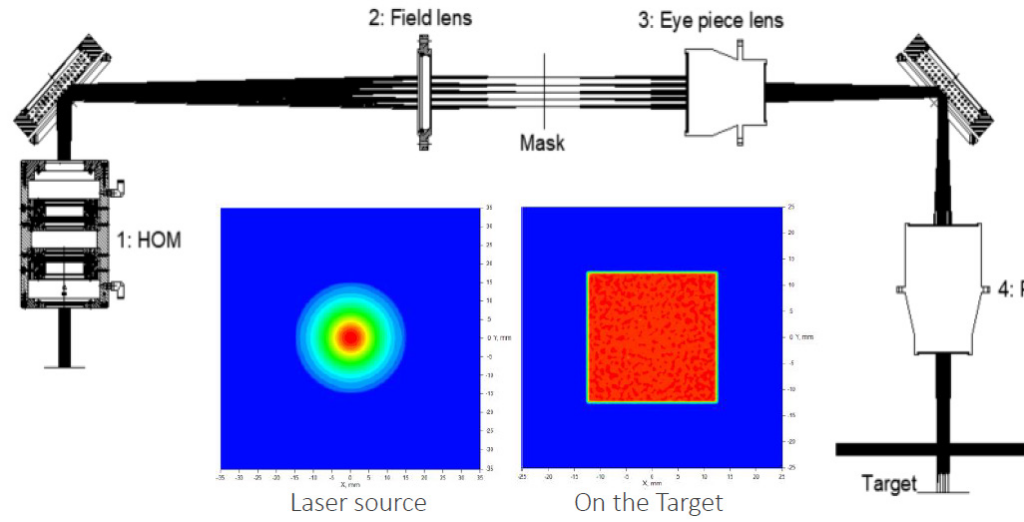

Lens array homogenizers transform an incoming laser beam into a highly uniform flat-top profile by spatially overlapping multiple beamlets.
When combined with projection lenses, the system provides precise pattern shaping, excellent uniformity, and stable transmission.
These optics are widely used in high-power laser applications such as display manufacturing, semiconductor processing, and surface treatment.
Key Specifications
- Supported Wavelengths: 193 nm – 1064 nm (UV to NIR)
- Input Beam Size: Configurable per system requirement
- Output Profiles: Rectangular, square, hexagonal, and custom shapes

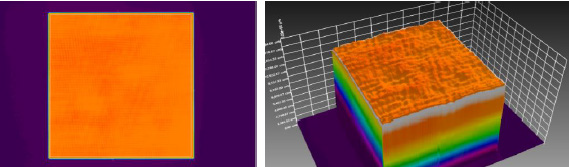

- Uniformity: ±2–5% over the illumination field
- Transmission Efficiency: >90% (depending on coating)
- Material Options: UV Grade Fused Silica, BK7, Optical Glass
- Coating Options: AR/HR, Broadband AR, Laser Line, High LIDT
Features & Advantages
- Lens array design for highly uniform beam homogenization
- Projection lens integration enabling precise pattern shaping
- Customizable profiles to match system requirements
(geometry, size, NA) - Compact modular design for easy integration into optical assemblies
- Durability for high-power laser operation in demanding environments
- Applications: OLED & LCD display manufacturing, Semiconductor annealing and lithography, Laser surface treatment and micromachining, Medical and scientific laser systems requiring uniform illumination
Applications
- OLED Panel Lithography
- Laser Annealing Systems
- Micro Lens Array Processing
- Advanced R&D in Laser Material Processing
