High-performance mirrors designed for precise reflection and durability in demanding laser systems. General Optics provides a wide selection of dielectric and metallic mirrors, optimized for UV through IR wavelengths, with high reflectivity and laser damage resistance.
- Mirrors provide high reflectivity and durability for high-power laser systems.
- Widely used in beam delivery, harmonic separation, and laser processing.
Wide Variety of Substrates
- Materials: UV Grade Fused Silica, BK7, CaF₂, Sapphire, Zerodur, Si, Ge, Others
- Standard & Customized Coating Options: HR, Partial Reflective, Laser Line HR, Broadband HR, Dual-wavelength
Key Specifications

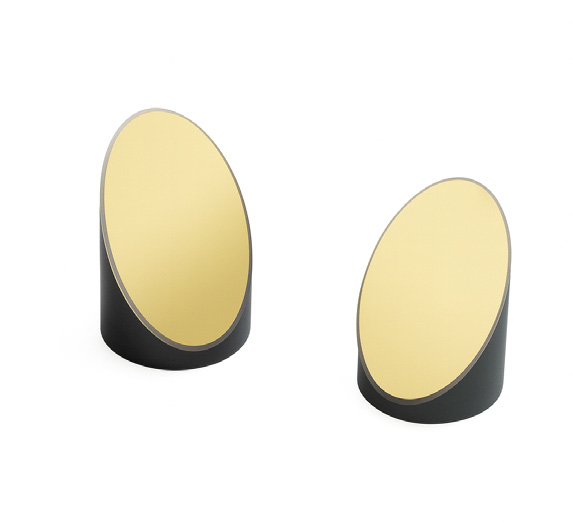

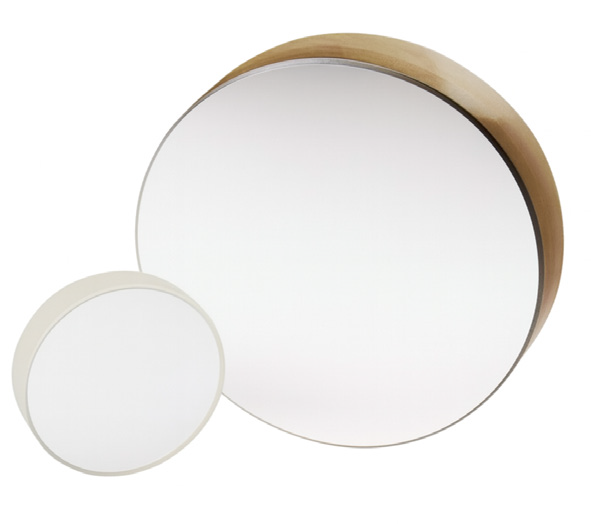

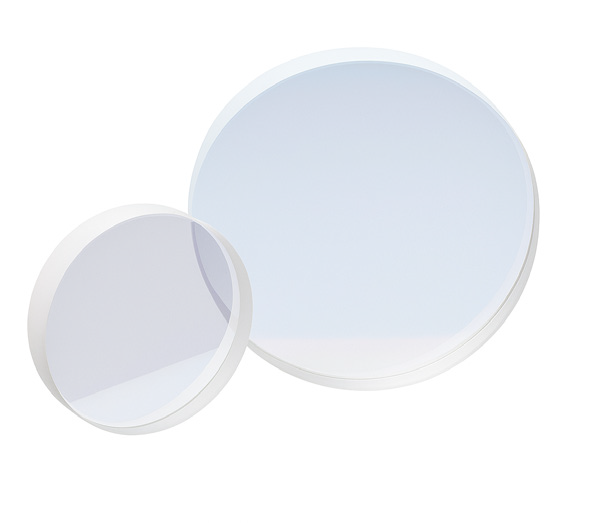

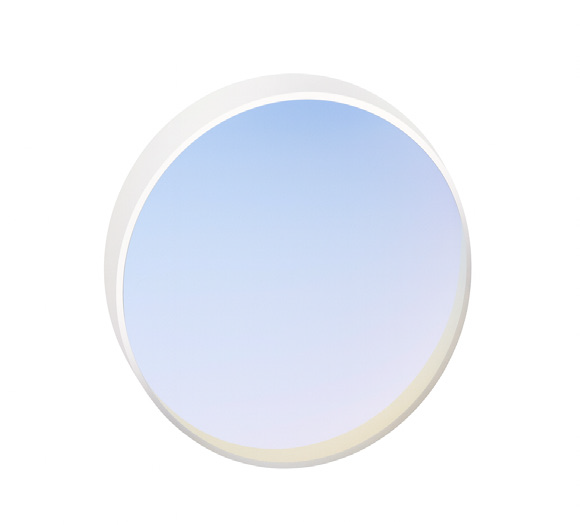

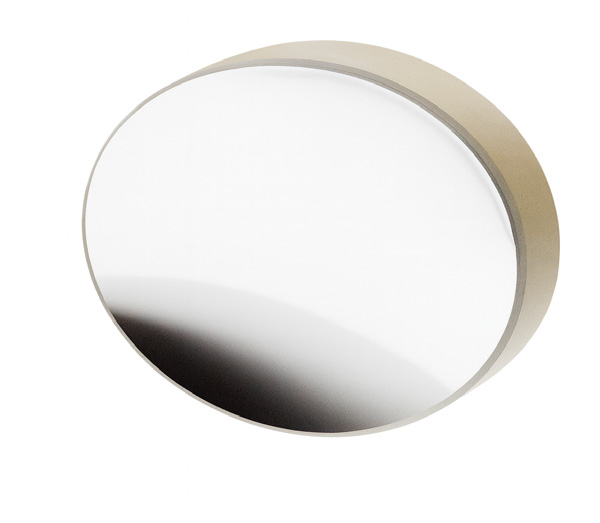

- Mirror types: Broadband Dielectric, Metallic (Al, Ag, Au), Laser Line Mirrors, Parabolic, Concave, Elliptical
- Reflectivity >99.9% (depending on coating and wavelength)
- Wavelength coverage: 193 nm – 12 μm
- Surface accuracy: λ/4 to λ/10 @ 633 nm
- Surface quality: 10-5 / 20-10
Typical Applications
- Beam delivery and laser processing systems
- Harmonic separation in high-power lasers
- Scientific instrumentation and research optics
- Aerospace and defense laser systems
- High LIDT coatings for high-power laser applications
- Large-format mirrors available up to Ø2050 mm
