At General Optics,
we provide advanced optical coating solutions covering the full spectral range, from DUV (193 nm) to IR (14 μm).
Designed for durability, our coatings demonstrate reliable performance under rigorous LDT testing. We support a wide range of substrates including fused silica, sapphire, and ZnSe, and provide customized AR, HR, polarizers, filters, and DLC coatings. Serving semiconductor, display, defense, and medical industries, our coatings ensure precision and consistency for the most demanding applications.
Core Strengths
- Broad Spectral Coverage: DUV 193 nm – IR 14 μm
- High Durability: Proven LDT performance, including advanced DLC coatings
- Material Versatility: Compatible with fused silica, sapphire, ZnSe, and other optical substrates
- One-Stop Solutions: AR, HR, polarizers, optical filters, and fully customized coating designs
Applications
- Semiconductor optics
- Display optics
- Defense and aerospace systems
- Medical and diagnostic devices
Coating Technologies
- Reactive magnetron sputtering for high-density, low-defect thin films
- Precision-controlled deposition processes for repeatable coating performance
- Custom multilayer designs optimized for wavelength, angle, and polarization requirements
Why Our Coating Works

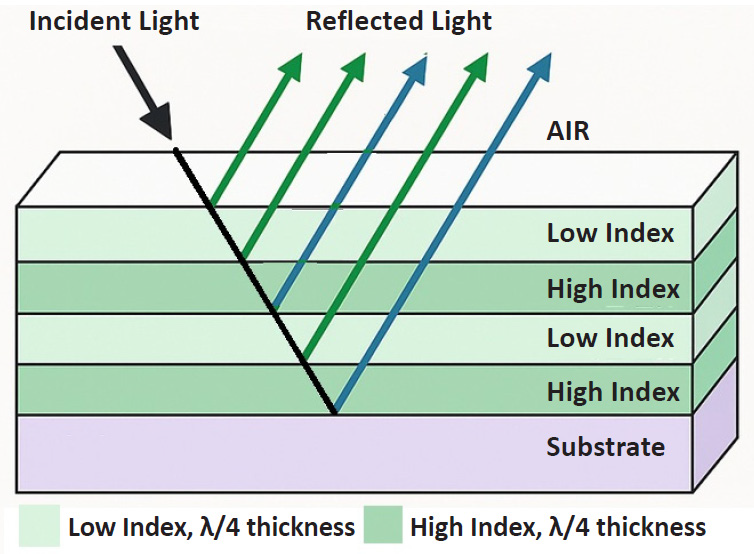

Principle of Multilayer Thin Film Coating (Quarter-Wave Stack)
Thin-film coatings are designed using alternating high-index and low-index layers, each with a quarter-wave optical thickness.
This multilayer structure creates constructive and destructive interference, precisely controlling reflection and transmission across the spectrum.
Ensuring Precision & Durability From UV to IR
